Series 5 Windows for Replacement

Available Styles

Series 5 Side-Load Single Hung Window

Feature Sheet

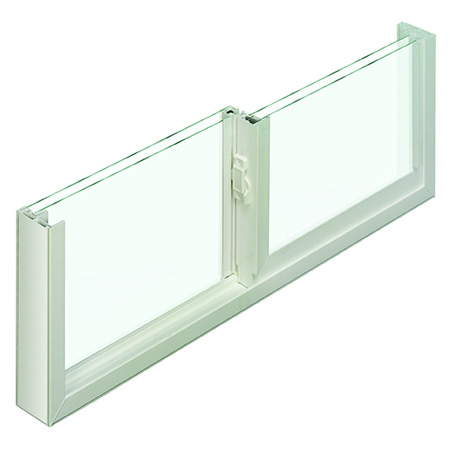

Series 5 Slider Window

Feature Sheet

Standard Features

• Removable bottom sash
• Industry leading .01 cfm/ft. air infiltration performance
• Multi-cavity vinyl lineals improve thermal performance and enhance sound absorbency
• Insulating glass provides energy saving thermal efficiency
• Fusion-welded frame and sash minimizes air and water infiltration and enhances overall durability
• Sweep lock helps provide a weather-tight seal and added security
• Block & Tackle balance system for ease of operation
• Dual screw boss, metal reinforced meeting rail provides added strength
• Custom sized to the nearest 1/8″
• Dual weather-stripping helps block air and water infiltration, keeping harsh elements outside and energy saving comfort inside
• Versatile half-screen installed from the inside or outside*
• Sloped sill reduces air infiltration and accommodates easy water run-off
• Built-in accessory channels accommodate multiple installation options
• Transferable, limited lifetime warranty
• DP-50 Rating (window size tested 36″ x 96″)
• Jamb depth: 2-5/8″

Series 5 Slider Window Specific Features:

• DP Rating R25 (window size tested 72″ x 48″)
• Jamb depth: 2-5/8″
• Available in 2-lite and 3-lite configuration
• 3SL available in 1/4-1/2-1/4 or 1/3-1/3-1/3 configurations
• XO or OX 2-lite styles available
• Half screen*

* Screens are not meant to restrain a child from falling through an open window.

Available Options

Color Options

Vinyl Color Options

White

Almond

---

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Options

Grid Types

5/8-Inch Flat Grid

3/4-Inch Flat Grid

5/8-Inch Contoured Grid

1-Inch Contoured Grid

---

Grid Patterns

Colonial

Perimeter Prairie

Prairie

Valance

Glass Options

• Low-E Glass
• Low-E Glass and argon gas for additional efficiency
• Ultra Low-E Glass and argon gas
• Obscure, tempered or double-strength glass

Additional Options

• Window Opening Control Device (WOCD) to prevent falling from a window (field applied)
• Factory mulling of twins, triples and architectural shapes
• Custom sizes available
